EGM350L CNC Universal Internal Grinder

Model ID：EGM350L

High speed box type dressing.
With EGM high speed box type dressing function, it drastically reduces the wheel dressing time.
This function allows the operator to input the specifications of the dresser and the geometric data of the profile to create the optimal dressing path.

PREV NEXT

			EGI-150 CNC	EGM-350 CNC	EGM-350L CNC	EGM-450 CNC
General capacity	Max. grinding ID	mm	300	φ400	φ300	φ400
	Max. grinding OD	mm	φ300	φ400	φ330	φ400
	Swing over workhead	mm	φ500	φ500	φ340	420
	Max. grinding depth	mm	200	260	280	260
	Max. weight of workpiece	kg	50	50	300 (w/ steady rest)	50
	Max. length of workpiece	mm	200	300	750	300
	Type of workhead		Single feeding wheelhead	Dual indenpendent wheelhead	Dual indenpendent wheelhead	Dual indenpendent wheelhead
Workhead	3-Jaw chuck		Hydraculic - 8"/10"(opt.)	Hydraculic - 8"/10"(opt.)	Manual- 8"/10"(opt.)	Hydraculic - 8"/10"(opt.)
	Swiveling angle range	deg	+15°~ -5°	+15°～-5°	+15°～ -5°	+15°～ -5°
	Manual travel distance (toward Z axis)	mm	250	250	550	250
	Spindle speed (infinite variable)	rpm	0~1000 (Variable speed)	0~1000 (Variable speed)	0~1000 (Variable speed)	0~1000 (Variable speed)
	Motor rated power / max. torque	kw	1.8(F)/2.2(M)	1.8(F)/2.2(M)	1.8(F)/2.2(M)	1.8(F)/2.2(M)
Spindlehead(Y axis)	OD grinding wheel size	mm	N/A	N/A	N/A	φ405x50xφ127
	ID grinding wheel size	mm	N/A	φ100	φ100	N/A
	Max. spindle speed	rpm	N/A	10,000 (std.)	10,000 (std.)	1300 (std.)
	Spindle motor/ max. torque	Kw/Nm	N/A	3.75Kw / 13Nm	3.75Kw / 13Nm	3.75Kw / 26Nm
Wheelhead(Z axis)	OD grinding wheel size	mm	N/A	φ100	φ100	N/A
	ID grinding wheel size	mm	φ100	N/A	N/A	φ100
	End-Surface grinding spindle (Opt.Z2)	mm	φ80(CBN)	N/A	N/A	N/A
	Max. spindle speed	rpm	20,000 (std.)	20,000 (std.)	20,000 (std.)	20,000 (std.)
	Spindle motor/ max. torque	Kw/Nm	3.75Kw / 13Nm	3.75Kw / 13Nm	3.75Kw / 13Nm	3.75Kw / 13Nm
X axis	Travel	mm	400	420	420	450
	Max. rapid feedrate	m/min	8	8	8	8
	Heidenhain linear scale resolution	um	0.05	0.05	0.05	0.05
	Min. increment	mm	0.0001	0.0001	0.0001	0.0001
	Servo motor rated power	Kw	1.8(F)/2.2(M)	1.8(F)/2.2(M)	1.8(F)/2.2(M)	1.8(F)/2.2(M)
Y axis	Travel	mm	N/A	350	350	350
	Rapid feedrate	m/min	N/A	8	8	8
	Min. increment	mm	N/A	0.0001	0.0001	0.0001
	Servo motor rated power	Kw	N/A	1.8(F)/2.2(M)	1.8(F)/2.2 (M)	1.8(F)/2.2(M)
Z axis	Travel	mm	350	350	350	350
	Max. rapid feedrate	m/min	8	8	8	8
	Min. increment	mm	0.0001	0.0001	0.0001	0.0001
	Servo motor rated power	kw	1.8(F)/2.2(M)	1.8(F)/2.2(M)	1.8(F)/2.2(M)	1.8(F)/2.2(M)
Motor	Hydraulic motor	Kw	0.75	0.75	0.75	0.75
Motor	Coolant pump	Kw	0.37+0.18	0.37+0.18	0.37+0.18	0.37+0.18
Machine	Net weight	kg	5000	5800	6800	6300
	Gross weight	kg	5500	6300	7300	6800
	Packing size (L x W x H)	mm	3350x2250x1950	3350x2250x1950	4000X2250X1950	3350x2250x1950

Standard accessories	Optional accessories

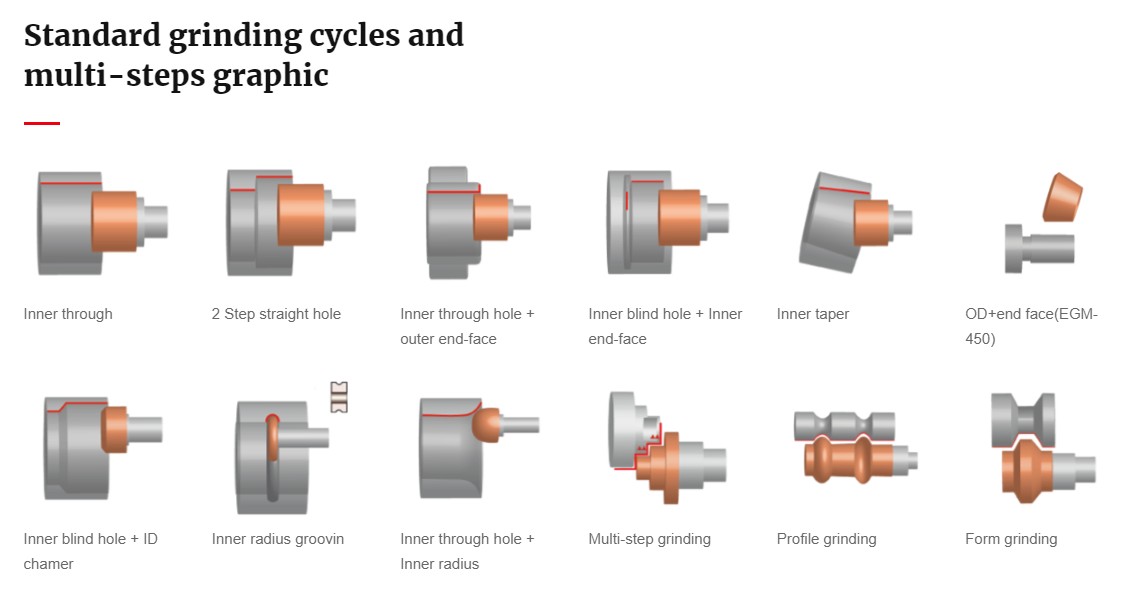

Control system: Mitsubishi M80 or FANUC 0i-TF with 10.4” screen	Mitsubishi controller (M80) dressing program: Radius / Taper / Multiple step / form shape
Three-direction dresser stand x 1 set, diamond dresser x 3 pcs	Mitsubishi controller (M80) iGrind program
Wheel spindle surface detecting & crash control system (current indicator)	Coolant system with magnetic separator & paper filter

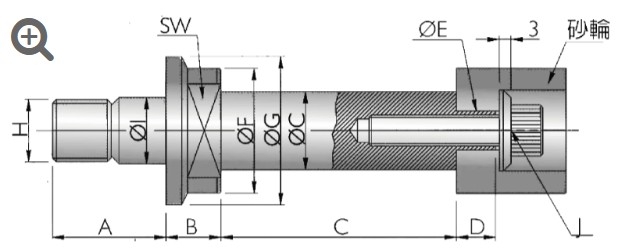

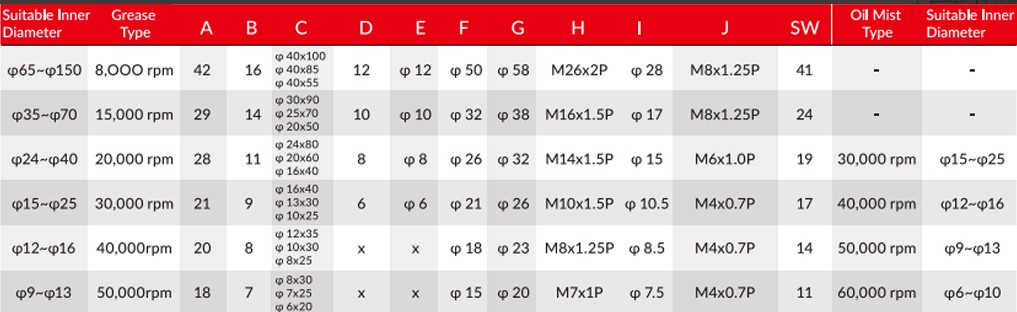

Grease type grinding wheel spindle: (Select 2 pc from 8,000~50,000RPM)	Coolant system with magnetic separator
Hydraulic 8" 3-jaw chuck (w/ solid roary cylinder)	Coolant system with paper filter
MPG handwheel: EGI 2 Axes, EGM 3 Axes control	CE standard electrical cabinet
X Axis Heidenhain linear scale (resolution 0.05 um)	Electrical cabinet air conditioner
Electricity cabinet w/ heat exchanger	Grease type grinding wheel spindle
Standard coolant tank 140L	Oil mist type grinding wheel spindle
Automatic lubrication system	Workhead spindle A2-6 (65mm thru-hole)
4-color indication signal light	Manual strong type 7" 3-jaw chuck
Levelling bolts and blocks	Oil & mist collecting system
Tools & tool box	Spindle oil mist lubrication system
Electrical wiring diagram	ID auto. gauging device
Operation manual & part lists	Diamond roller dressing device
Full-enclosed splash guard	Dressing sensor system
Workhead spindle A2-5	Soft-Jaw turning assembly
Electrical lubricator	B axis linear scale w/ digital readout
LED working light	Safety door lock
